Two Roll Cold Pilger Mil tube OD 89~219mm , Making Stainless Steel Seamless Tube
Description:
Cold pilgering is a longitudinal cold-rolling process that reduces the diameter and wall thickness of metal tube in one process step. LG220 two-roller cold rolling mill is applicable to state rolling,such as carbon steel,alloy steel,stainless steel,non-ferrous metal,rare metal and so on,with the characteristics of good turnoff precision,high surface roughness ect.
Quick Detail:
| Type | LG220 cold pilger mill |
| Input material | common carbon steel, alloy, nonferrous metal |
| Input size | 115~255 mm |
Output size: 89~219 mm
Specifications:
| No. | Name | LG220 | |
| 1 | Shell OD(mm) | 115~255 | mm |
| 2 | Shell WT(mm) | 6~22 | mm |
| 3 | Shell Length(mm) | 8 | mm |
| 4 | Finished tube OD(mm) | 89~219 | mm |
| 5 | Finished tube WT(mm) | 2~20 | mm |
| 6 | Finished tube Length(m) | 25 | m |
| 7 | Stroke Frequency of Mill time/min | 40~60 | time/min |
| 8 | Stroke of Rolling mill bus(mm) | 1205 | mm |
| 9 | Feeding Length(mm) | 2.4~10.3 | mm |
| 10 | rotation angle | 42° | |
| 11 | Roll Diameter(mm) | 650(580) | mm |
| 12 | Power(KW) | 400 | KW |
| 13 | Size (L×W×H) | 50×7.5×3.2 | m |
Competitive Advantage:
We provides custom designed solutions on pilger mills and tube reducers. Our true value is in our expertise in engineering designs through active tri-matrix software and then constructing these designs using our 15+ years of production & maintenance experience. We pride ourselves in offering good engineering solutions to your tube manufacturing process with a commitment to customer satisfaction. Our global customer base covers all alloys such as aluminum, stainless steel, copper, titanium, zirconium, gold, silver, platinum, palladium, and other special alloy materials.
LG220 cold pilger mill:

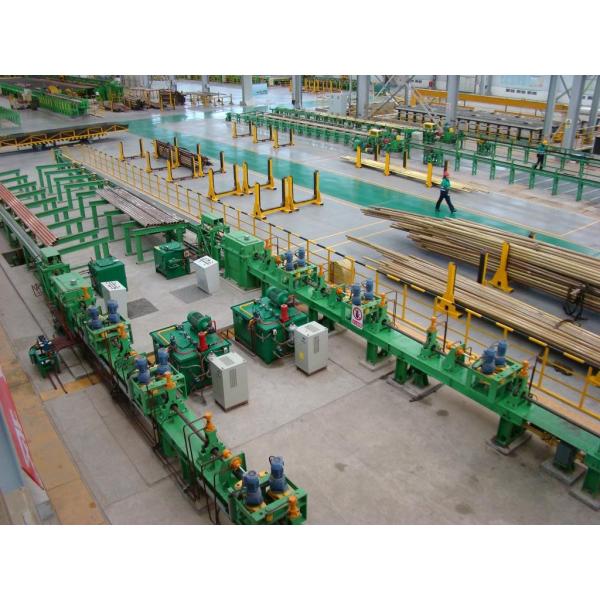

Reference photos for main equipment:
